Best PC Build for NVIDIA GeForce RTX 3060 Ti

The NVIDIA GeForce RTX 3060 Ti, one of NVIDIA’s 30 Series GPUs released in late 2020, lets you take on the latest games using the power of Ampere—NVIDIA’s 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory. Seeking to maximise the performance and longevity of the system based on RTX 3060 Ti, we have tested and reviewed latest computer accessories, and below is recommended PC build for NVIDIA GeForce RTX 3060 Ti:

GeForce RTX 3060 Ti Recommended PC Build List

Component	Item	Store
CPU	AMD Ryzen7 3700X	Amazon/B&H/Newegg
GPU	NVIDIA GeForce RTX 3060 TI	Out of Stock
Motherboard	ASUS STRIX B550-E GAMING	Amazon/B&H/Newegg
SSD	Corsair Force Series Gen.4 PCIe MP600 1TB NVMe M.2 SSD	Amazon/Newegg
Memory	G.SKILL Ripjaws V Series DDR4 3200MHZ 16GB (2 x 8GB)	Amazon
PSU	COOLER MASTER MASTERWATT 650W	Amazon/B&H
CASE	Cooler Master MasterBox TD500 Mesh Mid-Tower Case	Amazon/B&H/Newegg

 Recommended CPU: AMD Ryzen7 3700X – Check Price at Amazon/B&H/Newegg

The AMD Ryzen 7 3700X Processor is a powerful eight-core processor with 16 threads, designed for socket AM4 motherboards. Built with Zen 2 architecture, the third-generation 7nm Ryzen processor offers increased performance compared to its predecessor. It has a base clock speed of 3.6 GHz and can reach a max boost clock speed of 4.4 GHz. Moreover, it features 32MB of L3 cache, 24 PCIe Gen 4 lanes, and support for dual-channel 3200 MHz DDR4 RAM.  Besides the AMD Ryzen7 3700X includes a Wraith Prism cooler with RGB LED lingting, so you needn’t an additional CPU cooler for cooling effect.

Main Specifications

Number of Cores: 8	Number of Threads: 16
Base Clock: 3.6GHz	Max Boost Clock: 4.4GHz
Package: AM4	Total L1 Cache: 3512KB
Total L2 Cache: 4MB	Total L3 Cache: 32MB
TDP: 65W	Max Temps:95°C



Recommended Motherboard: ASUS STRIX B550-E GAMING – Check Price at Amazon/B&H/Newegg

The ASUS STRIX B550-E GAMING Motherboard can take your gaming experience to the next level. Powered by the AMD B550 chipset, this motherboard supports third-generation AMD Ryzen processors with the AM4 socket for high-end video games and content creation. The chipset takes full advantage of the large PCIe 4.0 data bandwidth to handle demanding tasks such as 4K live streaming, video editing, and gaming at high settings.

Up to 128GB of dual-channel ECC DDR4 RAM, reaching 4400 MHz when overclocked, can be installed across four memory slots to improve the system’s multitasking capabilities and speed. The ATX motherboard also features advanced cooling and supports up to two M.2 SSDs and six SATA III storage drives, which can be put into RAID 0, 1, or 10 configurations. Its two PCIe 4.0 x16 slots can accommodate 2-way NVIDIA SLI or 3-way AMD CrossFireX configurations to maximize your system’s frame rates at high resolutions. An additional PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots are available for compatible expansions such as Thunderbolt 3 cards. You can take advantage of AMD Ryzen processors with integrated graphics by connecting monitors to the motherboard’s DisplayPort 1.2 and HDMI 2.1 ports.

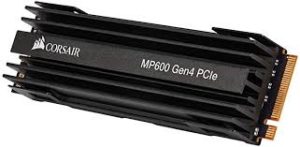

Recommended SSD:Corsair Force Series Gen.4 PCIe MP600 1TB NVMe M.2 SSD – Check Price at Amazon/Newegg

The CORSAIR Force MP600 Gen4 PCIe x4 NVMe M.2 SSD provides extreme storage performance, using Gen4 PCIe technology to achieve blazing fast sequential read speeds of up to 4,950MB/s and write speeds of up to 4250MB/s.

Main Specifications

Dimensions: 80×23×15mm	Inferface: PCIe Gen 4.0×4
Read Speeds: 4950MB/s	Write Speeds: 4250MB/s



Recommended Memory: G.SKILL Ripjaws V Series DDR4 3200MHZ 16GB (2 x 8GB)  – Check Price at Amazon

As the latest addition to the classic Ripjaws family, Ripjaws V series is the newest DDR4 memory designed for maximum compatibility and cutting-edge performance with the latest Intel Core processors. Built with the finest components, tested under the most rigorous conditions, and offered in five color options, Ripjaws V is the perfect choice for building a new performance system or for a simple memory upgrade.

Main Specifications

Multi-Chinnel Kit: Dual Channel Kit	Capacity: 8GB×2
Test Speed:3200MHz	Latency: CL14-14-14-34



Recommended PSU: COOLER MASTER MASTERWATT 650W – Check Price at Amazon/B&H

The COOLER MASTER MasterWatt 650W Power Supply from Cooler Master is a standard ATX-sized power supply designed to provide your system with stable and reliable power. It can output up to 650W of power and includes all the cables you need for up to a dual graphics card build. Moreover, it operates quietly and features multiple protection technologies to keep things operating smoothly.

Main Specifications

Dimension: 140×150×86mm	Efficiency: 85% typical load
Fan Size: 135mm	Total Output: 650W
Atc version :atx 12V v2.4	Protection Features: OPP/OVP/SCP/OCP/OTP



Recommended CASE: Cooler Master MasterBox TD500 Mesh Mid-Tower Case – Check Price at Amazon/B&H/Newegg

As a part of the computer, the main function of the case is to place and fix other computer accessories for support and protection. Although it is not a very important part, we still recommend choosing a case with a reasonable layout and ideal heat disspation to prevent damage due to overheating.

The Cooler Master MasterBox TD500 Mesh Mid-Tower Case is designed to look good without sacrificing functionality, this 40.14L mid-tower case comes with a tempered glass side window and three ARGB fans pre-installed. In addition to the pre-installed fans, users can add up to three 120mm fans or radiators to the top of the case, and an additional 120mm fan or radiator to the rear of the case. Inside, the TD500 can support ATX, Micro-ATX, Mini-ITX, and SSI CEB motherboards. It can also support E-ATX boards measuring up to 12″ by 10.7″.

Main Specifications

Case Dimensions: 493×219×469mm	Case Expansion Slots: 7
Case Weight: 6.95kg	Case Drive Bays: 2×3.5in  2×2.5in
Max PSU Length: 180mm	Max CPU Cooler Height: 165mm
